3DM FEATURE EXTRACTION



The tools for a professional 3D mapping business

complete mapping unit for Image, LiDAR and DSM mapping
process features and results in semi- or full automated mode
document assets, centralize data management
roles and permissions for team work

ADVANCED FEATURE EXTRACTION SOFTWARE FOR 3D MAPPING

MANUAL, SEMI-, AND FULL AUTOMATED MAPPING TOOLS FOR ASSET MODELING

Product Movie

Features

PROFESSIONAL FEATURE EXTRACTION UNIT

The 3DM Feature Extraction product has no parallel anywhere in the world: a smart set of displaying and measuring tools combined with a dedicated user interface for every type of data (360/planar imagery, LiDAR/DSM point cloud) allows every user to browse efficient through all types and sizes of mobile, indoor, uas, and terrestrial mapping content in very little time.

FULL 3D VIEW

Full 3D and image viewing; Play through all images; Overlay any 2D and 3D vector data; Set transparency, view depth, height adjustment of 3D point cloud; Measure in 2D/3D & Imagery; Single click and triangulation measurements; Semi-automated measurements of point, line, area, circle, catenary curve, squared volumes, etc; Extract features and save in GIS/CAD; 3D view in stereo, perspective and isometric mode; Skyline backdrop on 3D view; 3D movie creator and export (flythrough)

STRONG INDUSTRY SUPPORT

Orbit’s 3D Mapping software supports all known mobile, uas, oblique and terrestrial mapping hardware systems, translating different device setups and specifications into a single user friendly environment.  With templates tuned to each vehicle setup, Orbit’s products make import very simple.

AUTOMATIC SURFACE, RIDGE & CORNER RECOGNITION

Use the preference box to optimize your hover behaviour. Colorize hoover to visualize information about the underlying pointcloud, track surfaces, ridges and corner, snap to nearest point, interpolate between points, … ! In other words, precise the hover exactly in your way depending on your workflow needs.

PRODUCTION TEAM SETUP

The Orbit MM Feature Extraction software comes in three version and is available in a client-server setup. This Client-Server setup allows professional modeling teams to organize and manage the production workflow according own requirements.

ANALYSE & REPORT VOLUMES, PROFILES, CONTOURS, CROSS SECTIONS, CLASHES

Process cross sections along your trajectory or create a profile along a 3D path. Calculate and analyse volumes over time. Detect clashes using an imported or designed shape. Get your optimal Slice View for in-depth analyses. Generate contour lines within a predefined area. Document & report your results.

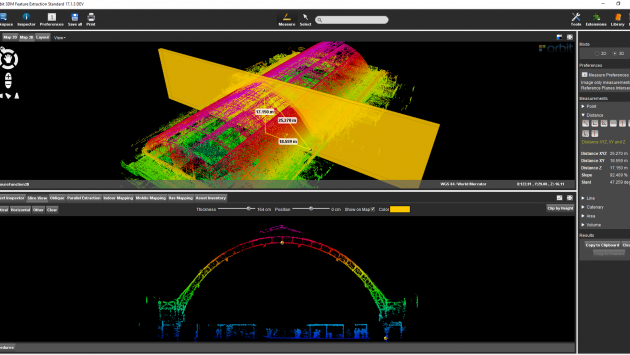

HORIZONTAL AND VERTICAL SLICES, FLOOR PLAN BUILDER

Make the right slices through the captured point clouds to update indoor or outdoor meaurements. Start from scratch or update existing floor plans using the incorporated Floor Plan Builder. The offered Floor Plan workflow reduces work load and time and delivers maps as never seen before.

WORKFLOW ASSISTED FEATURE EXTRACTION MANAGEMENT

Workflow assisted extraction of features
Define and manage layer themes easily
Create objects with any measurement tool, add attribuation, snapshots and documents
Use quick procedure for fast extraction

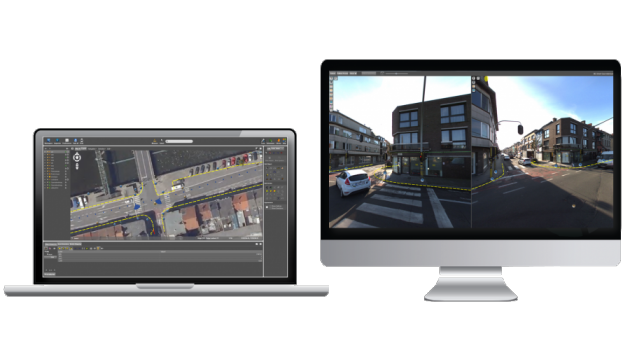

OPTIMIZE TEAMWORK WITH CLIENT-SERVER SETUP

Set up your production unit with a teammanager and several operators in a floating license structure. The teammanager is responsible for importing and preparing the mobile mapping data, the workflow setup, data management, export of themes and database, and control of all operators. The operators on the other hand can work together in teams sharing all their resources : mobile mapping data, themes, visualization, permissions and many more. Elements are extracted in a central data storage environment which means real-time adjustments for all operators!

Comparison Table

  • Support all 3D mapping systems
  • Import and optimize data
  • Full 3D viewing (point cloud & imagery)
  • Use and overlay vector data
  • Use raster data
  • Measure points, lines, areas, volumes, catenary
  • Copy measurement to feature
  • Contour lines
  • Volumetric analysis
  • Profiles & cross sections
  • Slice viewer
  • Movie maker
  • Additional semi automated measurement tools
  • Asset inventory module
  • Floor plan builder
  • Team workflow & verify procedures
  • Client/Server workforce enabled
  • Auto-creation profiles & cross sections
  • Clash detection
  • Automatic pole detection
  • Automatic traffic sign detection
  • Template-based pole detection
  • Generate report enabled
  • BASIC

  • MOST POPULAR

  • STANDARD

  • PRO

A more detailed full overview of all functionalities and components can be found on the knowledge base.

Version 18

Download

Orbit 3DM Feature Extraction Basic
Version:   18.0.0
Operating system:   Windows 64bit

Download

Orbit 3DM Feature Extraction Standard
Version:   18.0.0
Operating system:   Windows 64bit

Version 17

Download

Orbit MM Feature Extraction Pro
Version:   17.1.1 - June 2017
Operating system:   Windows 64bit

Download

Orbit Oblique Feature Extraction
Version:   17.1.2 - July 2017
Operating system:   Windows 64bit
